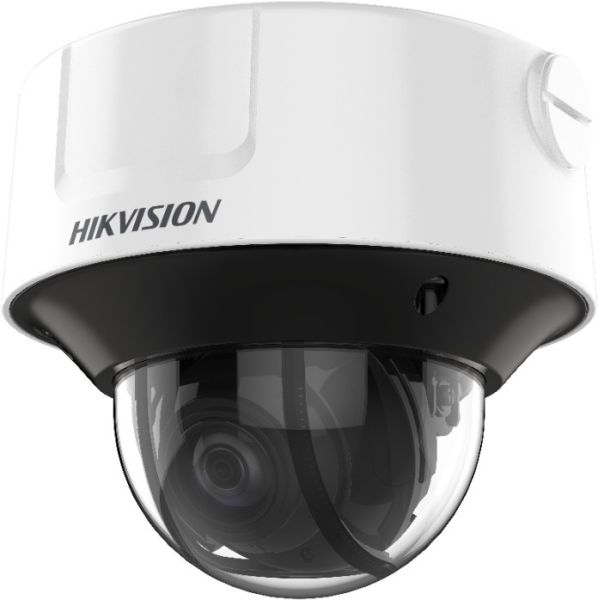

Hikvision DS-2CD3D86G2T-IZHS

8 MP Darkfighter Varifocal Dome Network Camera
High quality imaging with 8 MP resolution
Anti-IR Reflection
Clear imaging against strong back light due to 120 dB true WDR technology
Motorized varifocal lens for easy installation and monitoring
False alarm reduction through human and vehicle target classification based on deep learning
Efficient H.265+ compression technology
Audio and alarm interface available
Water and dust resistant (IP67) and vandal-resistant (IK10)

Camera
Image Sensor1/1.8" Progressive Scan CMOS
Max. Resolution3840 × 2160
Min. IlluminationColor: 0.004 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100, 000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
Focal Length & FOV2.8 to 12 mm, horizontal FOV 112° to 41°, vertical FOV 58° to 23°, diagonal FOV 137° to 47°

8 to 32 mm, horizontal FOV 42° to 15°, vertical FOV 23° to 9°, diagonal FOV 49° to 17°
Lens MountIntegrated
Iris TypeP-iris
Aperture2.8 to 12 mm: F1.2

8 to 32 mm: F1.7
Depth Of Field2.8 to 12 mm: 1.5 m to ∞

8 to 32 mm: 1.5 m to ∞
DORI
DORI2.8 to 12 mm: D: 87 m to 216 m, O: 34 m to 85 m, R: 17 m to 43 m, I: 8 m to 21 m

8 to 32 mm: D: 218 m to 580 m, O: 86 m to 230 m, R: 43 m to 116 m, I: 21 m to 58 m
Illuminator
Supplement Light Range2.8 to 12 mm: up to 40 m

8 to 32 mm: up to 60 m
Supplement Light TypeIR
Smart Supplement LightYes
IR Wavelength850 nm
Video
Main Stream50 Hz:

25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz:

24 fps (3840 × 2160)

30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.
Fourth Stream50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)

*Fourth stream is supported under certain settings.
Video CompressionMain stream: H.265/H.264/H.264+/H.265+

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

Fourth stream: H.265/H.264/MJPEG

*Third stream and fourth stream are supported under certain settings.
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR/VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region Of Interest (ROI)5 fixed regions for main stream and sub-stream
Target CroppingYes
Audio
Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise FilteringYes
Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for Open Network Video Interface, memory card encryption, SFTP encryption, SRTP encryption
Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in required live view: IE 10, IE 11

Plug-in free live view : Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+
Image Parameters SwitchYes
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night SwitchDay, Night, Auto, Schedule
Wide Dynamic Range (WDR)120 dB
Image EnhancementBLC, HLC, 3D DNR
SNR≥ 52 dB
Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Audio1 input (line in), max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;

1 output (line out), max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium
Built-In Microphone-U: Yes
Alarm2 inputs, 2 outputs (max. 24 VDC, 1 A; 24 VAC, 1 A)
Reset KeyYes
Power Output12 VDC, 100 mA
Event
Basic EventMotion detection, video tampering alarm, exception
Smart EventUnattended baggage detection, object removal detection, scene change detection, audio exception detection
LinkageUpload to NAS/memory card/FTP, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning
Deep Learning Function
Face CaptureYes
Perimeter ProtectionLine crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types (human and vehicle)
General
Power12 VDC ± 25%, 0.9 A, max. 10.8 W, two-core terminal block

24 VAC ± 20%, 0.75 A, 50/60 Hz, max. 10.8 W

PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W
DimensionØ162 × 141.8 mm (Ø6.4" × 5.6")
Package Dimension251 mm × 215 mm × 189 mm (9.9" × 8.5" × 7.4")
WeightApprox. 1420 g (3.1 lb.)
With Package WeightApprox. 2058 g (4.5 lb.)
Storage Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
General FunctionAnti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
Language33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Approval
EMCFCC (47 CFR Part 15, Subpart B)

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)

RCM (AS/NZS CISPR 32: 2015)

IC (ICES-003: Issue 7)

KC (KN32: 2015, KN35: 2015)
SafetyUL (UL 62368-1)

CB (IEC 62368-1: 2014+A11)

CE-LVD (EN 62368-1: 2014/A11: 2017)

LOA (IEC/EN 60950-1)

BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005)
EnvironmentCE-RoHS (2011/65/EU)

WEEE (2012/19/EU)

Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529-2013)

IK10 (IEC 62262: 2002)
